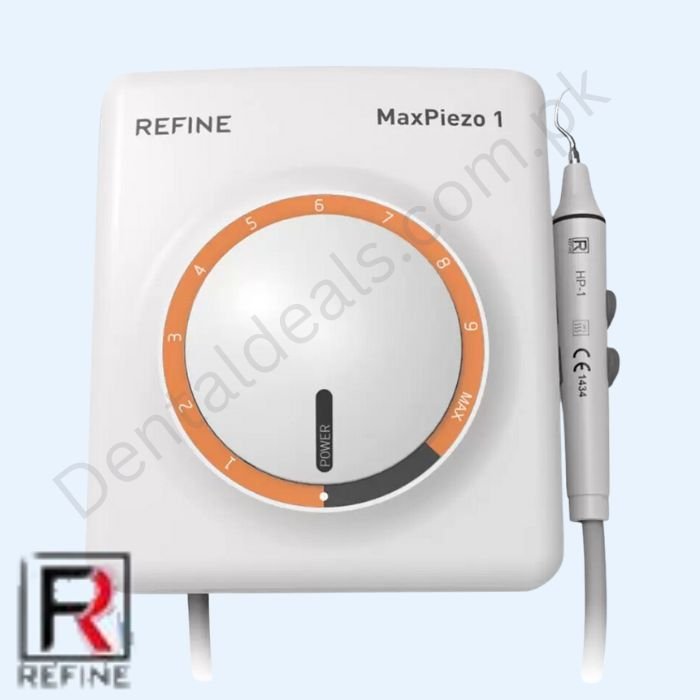

REFINE MAX PIEZO 1 ULTRASONIC SCALER

1. Product Overview

Guilin Refine Medical Instrument Co., Ltd is a professional manufacturer to researches, develops produces, and sells ultrasonic scalers. The product is used for teeth cleaning and is also an important device for teeth disease prevention and treatment. The ultrasonic is composed of the main unit, headpiece, cable, water pipe, tip torque wrench, foot switch, and power supply.

The ultrasonic scalar has the following features.

• Detachable Handpiece can be autoclaved under 134oC and 0.22 Mpa
• Automatic frequency tracking ensures that the device always works on the best frequency, stable, and efficient performance.
• The ultrasonic scaler is intended used in periodontology, for the removal of plaque and calculus, and the cleaning of tooth surfaces and root canals.

Adults and pediatrics with periodontal disease treatment or periodontal cleaning regularly.

2. Intended User:

The Ultrasonic Scaler is intended to be operated by a professionally trained and qualified dentist.

3. Contraindications:

(i)The Hemophilia patient is forbidden to use this equipment.

(ii) The patient or doctor with a heart pacemaker is forbidden to use this product.

(iii)The heart disease patient, pregnant women, and children should be cautious about using the equipment.

4. Intended patient population:

adults and paediatrics the periodontal disease treatment or periodontal cleaning regularly.

5. Equipment Safety Classification:
6. i)     Operating mode: Continuous operation.
7.  ii)     Type of protection against electric shock: Class II.

iii)      Degree of protection against electric shock: Type B Applied part.

1. iv)      Applied part of the equipment: Tip.
2. v) Degree of protection against harmful ingress of water: Ordinary equipment.
3. vi) Equipment cannot be used in the presence of a flammable anesthetic mixture with air oxygen or nitrous oxide.

Specification:

• Power Input: 220-240VAC 50Hz /110VAC 60Hz
• Main unit input: 24VAC 50Hz 1.3A
• Frequency: 30kHz±3kHz
• Water pressure: 0.1bar-5bar(0.01MPa-0.5MPa)
• Package size: 375mm*305mm*120mm
• Gross Weight: 2.4Kg
